Anchor Bolts 2D

$10.00

NOT available for AutoCAD LT.

Clear

Description

Anchor Bolts 2D

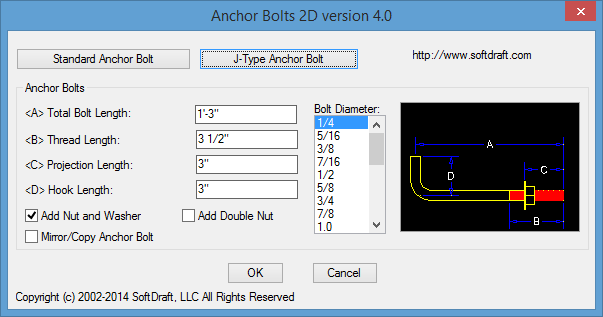

Draws a Standard or ‘J’ type anchor bolt for base plate details. Options include user defined dimensions for total bolt length, thread length, projection length, and hook length. Select from list of bolt diameters starting at 1/4″ through 4″. Additional toggle options include “add Nut and Washer”, “add Double Nut” and “Mirror/Copy”.

Once the options are selected click OK and you are prompted for the Anchor bolt embed point. Anchor bolt threads are hatched automatically.

An option to copy the Standard and mirror the ‘J’ type anchor bolt, saves time in creating a pair of anchor bolts for column details. Anchor Bolt objects are placed on the current layer.

On the Standard Anchor Bolt you can erase the bolt head and mirror the threads for a double end rod or include the nut and washer.

General Usage Instructions

This app is useful when creating 2D construction documents for drawing base plate connection details or bolted beam-to-column details using the threaded rod in elevation views.
