PVC Valves 3D

Available for the full version of AutoCAD

$69.99$179.99

SKU: pvcvalves3d Categories: , ,

Description

What is PVC Valves 3D Piping App?

PVC Valves 3D is a powerful tool that lets you easily add realistic-looking PVC valves to your 3D piping models.
Think of it like a library of pre-built valves you can drop and drag into your design, saving you time and effort compared to modeling them yourself.

3D PVC Valves Piping Dialog

Why use it?

  • Accuracy and Detail: Each valve is meticulously crafted based on real-world dimensions from leading manufacturers like Asahi and Spears.
    This ensures your models are not only functional but also visually stunning.
  • Enhanced Presentations: Impress clients and colleagues with professional-quality visuals that showcase your piping system in true detail.
    No more relying on basic sketches or symbols!
  • Boost Efficiency: Forget manually drawing valves from scratch. With PVC Valves 3D, you can insert the right valve in seconds, freeing up valuable time for other tasks.
  • Seamless Integration: Works seamlessly with your existing piping software, so you can add valves directly into your current projects without hassle.

Key Features:

  • Extensive Library: Choose from over 115 different flanged and socket valves in sizes ranging from 1/4″ to 6″.
  • Simple Interface: Access all valves from a user-friendly dialog box, making it easy to find the perfect one for your needs.
  • Flexible Placement: Position valves with handles on the side, top, bottom, or vertically based on your design requirements.
  • Automatic Piping: Generate 3D pipe sections in the correct size to connect your valves effortlessly.

Benefits:

  • More accurate and reliable 3D models
  • Faster design process and increased efficiency
  • Professional-looking presentations that impress clients
  • Reduced rework and errors due to precise valve placement

Whether you’re a professional engineer or a DIY enthusiast, PVC Valves 3D can take your piping projects to the next level.

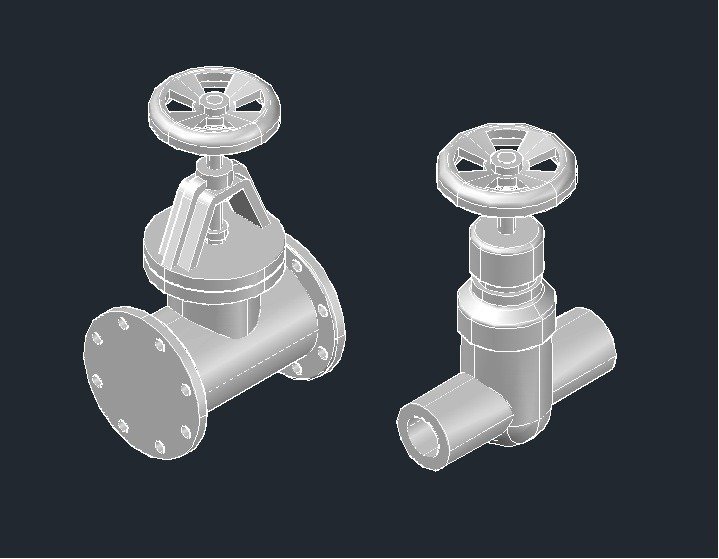

3D PVC Ball Valves Piping

Butterfly Valves 3D Solid Piping Angle Valves 3D Piping Solids Gate Valve 3D Solid Piping

What Other Valve Apps Can I Add?
The following 3D Piping Valve Apps are available for use in your 3D piping models.
Bronze Valves 3D
Iron Valves 3D
Steel Valves 3D

Valves are inserted with the valve handles on the side, top, or bottom of the valve body, or in a vertical position based on the toggle selected.
3D pipe can also be easily drawn for the size selected.

Includes 117 Flanged and Socket 3D Valves:
“Ball Flanged” “Ball Scoket – Asahi” “Ball Socket – Spears” from 1/2″ to 6″
“Butterfly Handle Oper. – Asahi” from 1-1/2″ to 24″
“Check Socket-Ball Spears” from 1/2″ to 6″
“Diaphragm Flanged-Asahi” from 1/2″ to 10″
“Gate Flanged Asahi” “Gate Flanged Spears” “Gate Socket” from 1-1/2″ to 14″
“Globe Flanged Asahi” “Globe Socket Asahi” from 1/2″ to 4″
“Needle Straight” “Needle Angle” from 1/4″ to 1/2″



Additional information

Your CAD Type

AutoCAD

Subscription Option 1-3 Years

1 – Year, 2 – Years, 3 -Years
