Steel Valves 3D

Available for the full version of AutoCAD

$129.99$299.99

SKU: Steelvalves3d Categories: , ,

Description

Steel Valves 3D allows the user, without having to change the UCS to easily place valves in various 3D views by selecting one of the toggles on the dialog.

Valves are inserted with the valve handles on the side, top, or bottom of the valve body, or in a vertical position based on the toggle selected.
3D pipe can also be easily drawn for the size selected.

Includes 457 flanged, threaded and buttweld valves:
“Ball Valves” from 1/4″ to 12″
“Butterfly Valves” from 2″ to 12″
“Check Valves” from 2″ to 24″
“Gate Valves” from 2″ to 24″
“Globe Valves” from 2″ to 14″
“Plug Valves” from 1/2″ to 24″

Flanges 150#, 300#, 400#, 600#, 900# 1500# and 2500#:
Blind
Weld Neck
Threaded
Slip On
Lap joint

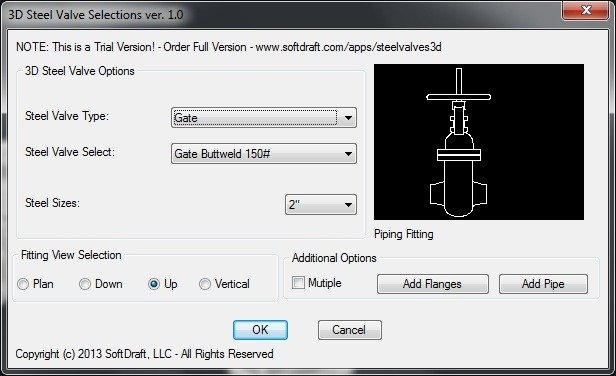

3D Steel Valves Piping Dialog

Steel Valves Piping 3D Solid
